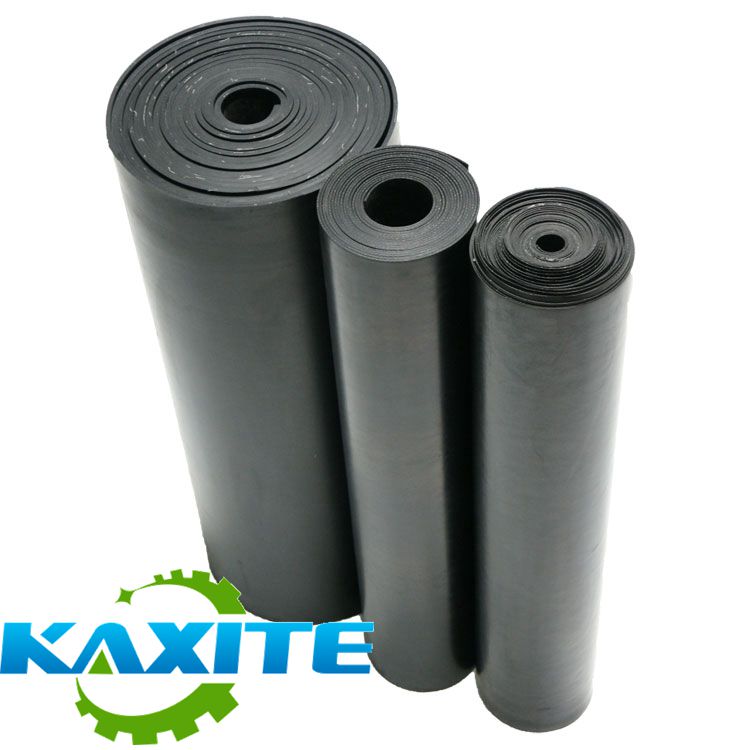

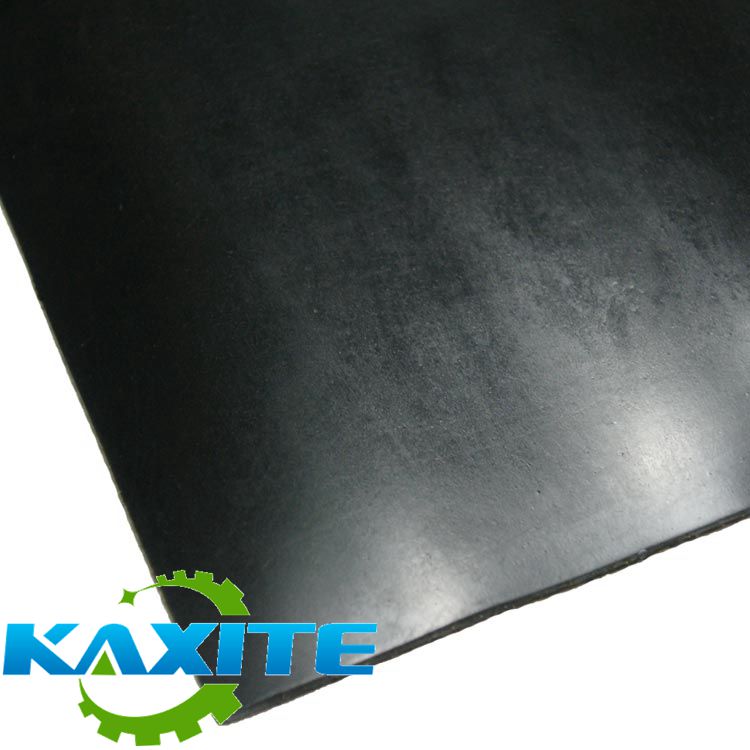

Cloth Inserted SBR - 70A
"Cloth-Inserted Rubber Sheet" is made with durable styrene butadiene rubber, also known as SBR rubber. Styrene butadiene rubber is an affordable elastomer with good abrasion resistant qualities. The secret to the heavy-duty qualities of this rubber sheet is the cloth inserted into the material. Per 1/16” inch of thickness you will find on ply of fabric, hence the 1/16” version is 1-ply, the 1/8” thick is 2-ply and so forth. The addition of the fabric reinforces the rubber to prevent stretching and ultimately adds tear strength for fastening applications.
Fabric reinforced rubber secures mechanical fastening at an affordable price point.
|Description:||Cloth inserted sheet materials are designed to add stability when mechanical fastening is necessary. Cloth Inserted SBR is stocked. This construction includes one ply of cotton fabric for each 1/16” thickness.|
|Compound:||Standard sheet is a made of SBR (Styrene Butadiene Rubber) with a polyester inserted fabric|
|Weight:||Approximate weight per square foot: 1/8" weighs 1 lbs.|
|Durometer:||70 Shore A, +/- 5|
|Temperature Range:||-10 F to 190 F|
|Minimum Tensile:||500 PSI or 4 MPA|
|Gauges:||1/16" 1ply, 1/8" 2plies, 3/16" 3plies, 1/4" 3plies.|
|Widths:||10", 36" and 48" (custom widths and gauges are available upon request)|
|Applications:||For use where mechanical fastening is necessary.|
|PSA:||Pressure sensitive adhesive can be applied to this product upon request.|
|Flexibility:||This hard durometer (65-75) sheet rubber offers limited flexibility and low elasticity.|
|Custom Cuts||In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cut. Please submit your drawings for a price quote.|
|Availability:||CI SBR is generally in stock.|
